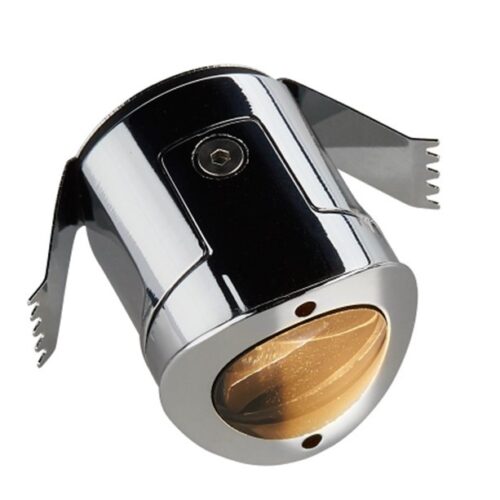

LED POD Handrail Light – Curved 32mm | Lightrail 2W/ 24V

POD32

A highly efficient Lightrail LED Puck Light – the POD32 handrail light with its sleek & sophisticated design & optical dark-free zone has been engineered for seamless splicing of light to eliminate unnecessary glare & provide asymmetrical illumination to areas requiring handrail illumination.

A high-quality, weatherproof Osram LED Handrail Pod Light designed for stainless steel handrails that meets International standard DMX512 protocol and comes with a 3-5 year warranty, power cable and connector.

Standard and custom sizes  available – for more information contact: sales@lightrail.net.au

  • POD 32 LED Handrail Light (32mm)
  • Compact design
  • High strength die-cast aluminium housing
  • Adopts the anti-theft design
  • Self-contained stainless steel bracket
  • Optical dark-free zone design for seamless
    splicing of light
  • International standard DMX512 protocol
  • Waterproof IP66 rating
  • Maximum recommended quantity of Pod 32 fittings using 0.75mm cable is 25 – with a maximum distance of 50m
  • Maximum recommended quantity of Pod 32 fittings using  2.5mm cable is 50 – with a maximum distance of 100m
  • Osram LED’s



Data Sheet

Datasheet-Lightrail_POD32_LED_handrail_light

IES FILES

Lightrail -POD32-DC24V-2W-3000K-50×80°



Lightrail -POD32-DC24V-2W-4000K-50×80°





LM80 Report

POD32_LM80_Report
