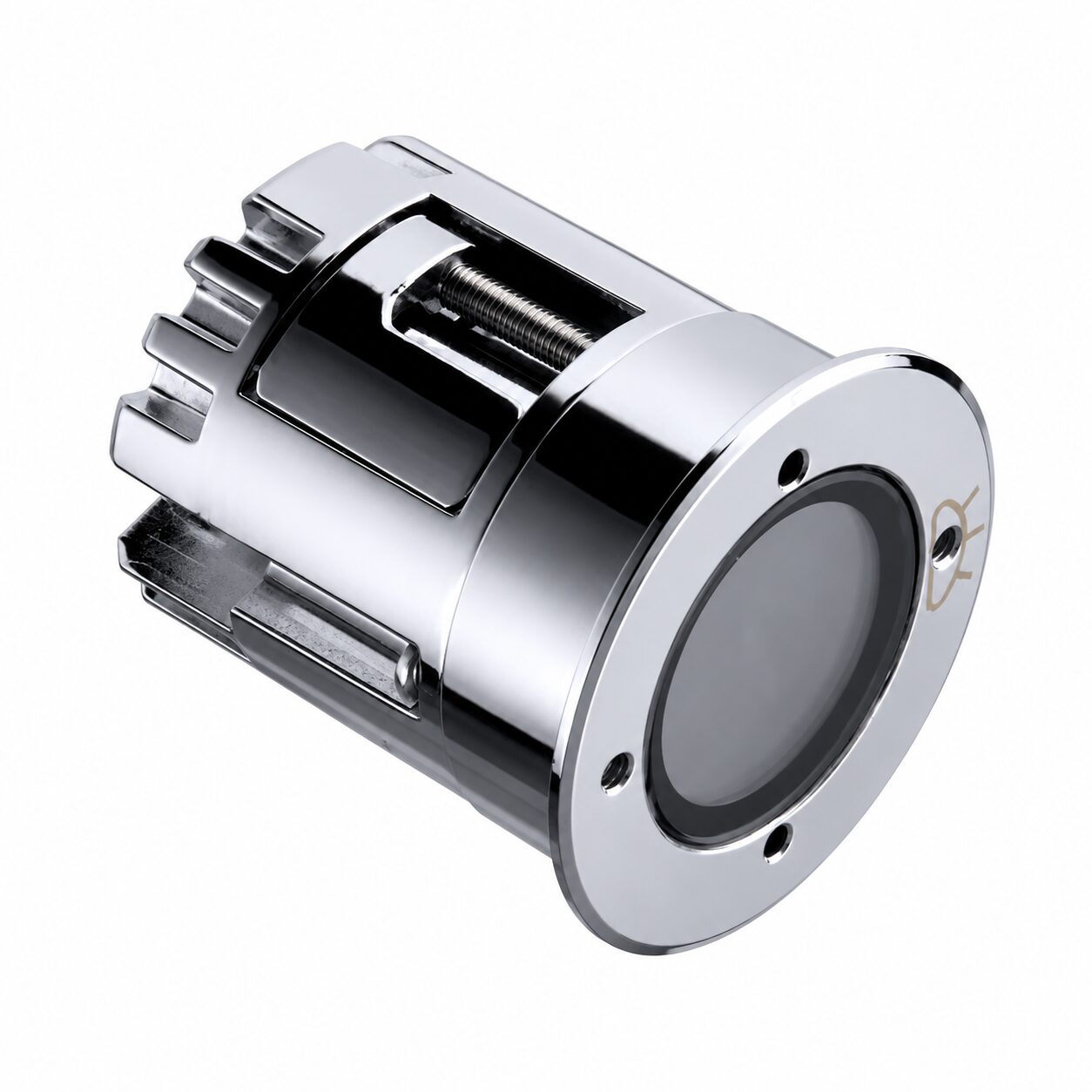

LED POD Handrail Light – Flat 37mm | Lightrail 2W/ 24V

POD37

A highly efficient and compact LED Pul light – the Lightrail LED POD37 handrail has been engineered for seamless splicing of light to eliminate unnecessary glare and provides accurate asymmetrical illumination.

A high-quality, weatherproof LED Handrail Pod Light designed for stainless steel handrails that meets International standard DMX512 protocol and comes with a 3-5 year warranty, power cable and connector.

Standard and custom sizes  available – for more information contact: sales@lightrail.net.au

  • POD 37 LED Handrail Light (37mm)
  • Compact appearance design
  • High strength die-cast aluminium housing
  • Adopts the anti-theft design fixed by rotation
  • Self-contained stainless steel bracket
  • Optical dark-free zone design for seamless
    splicing of light
  • Accurate asymmetrical optical design
  • International standard DMX512 protocol
  • Waterproof IP66 rating
  • Surface is treated with anti-corrosion by
    electroplating.
  • Maximum recommended quantity of Pod 32 fittings using 0.75mm cable is 25 – with a maximum distance of 50m
  • Maximum recommended quantity of Pod 32 fittings using  2.5mm cable is 50 – with a maximum distance of 100m
  • Osram LED’s



Data Sheet

Datasheet_Lightrail_POD37_LED

IES FILES

Lightrail_POD37-DC24V-2W-3000K-55×70° Lightrail_POD37-DC24V-2W-4000K-55×70°

LM80 Report

POD37_LM80_Report
