LED Handrail – Iluminated Stainless Steel 50x25mm | Lightrail SS5025

SS5025

  • Product: LED Handrail – Illuminated Stainless Steel 50x25mm | SS5025
  • Material: Made from 50x25mm 316 stainless steel slotted channel, available in polished or satin finish.
  • LED Profile: Utilizes Lightrail 1414 LED profile with an opal polycarbonate diffuser for a smooth and even light distribution.

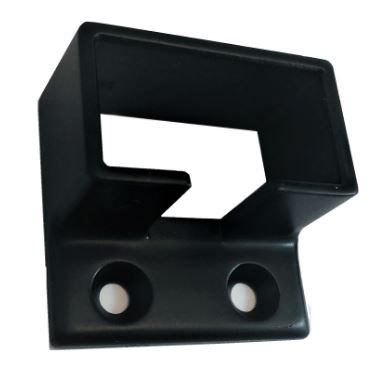

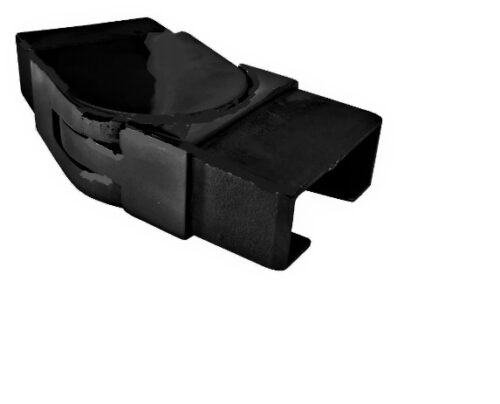

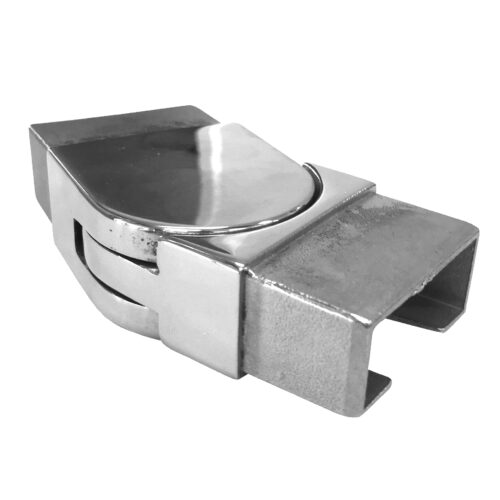

  • Accessories: Comes with a range of stainless steel fixing accessories such as hollow wall brackets for power entry, end caps, etc.
  • LED Strip: Specifically developed for LED handrail STB120 (24v 15w) and DKB120 (24v 9.6w).
  • Applications: Ideal for staircases, walkways, or any area where additional lighting and safety measures are required.
  • Installation: Designed for easy installation with a range of fixing accessories.
  • Aesthetics: The sleek stainless steel design adds a modern and sophisticated touch to any space.
  • Safety: Provides additional safety and visibility in low-light conditions.

Data Sheet

Lightrail_SS5025_stainless_steel_led_handrail_system_2022.10.1

Photometric File

Lightrail_photometry_1414-DKB120.96.3K

Lightrail 1414-STB120-3000k

Download

Lightrail_photometry_1414-DKB120.96.3K

Download
